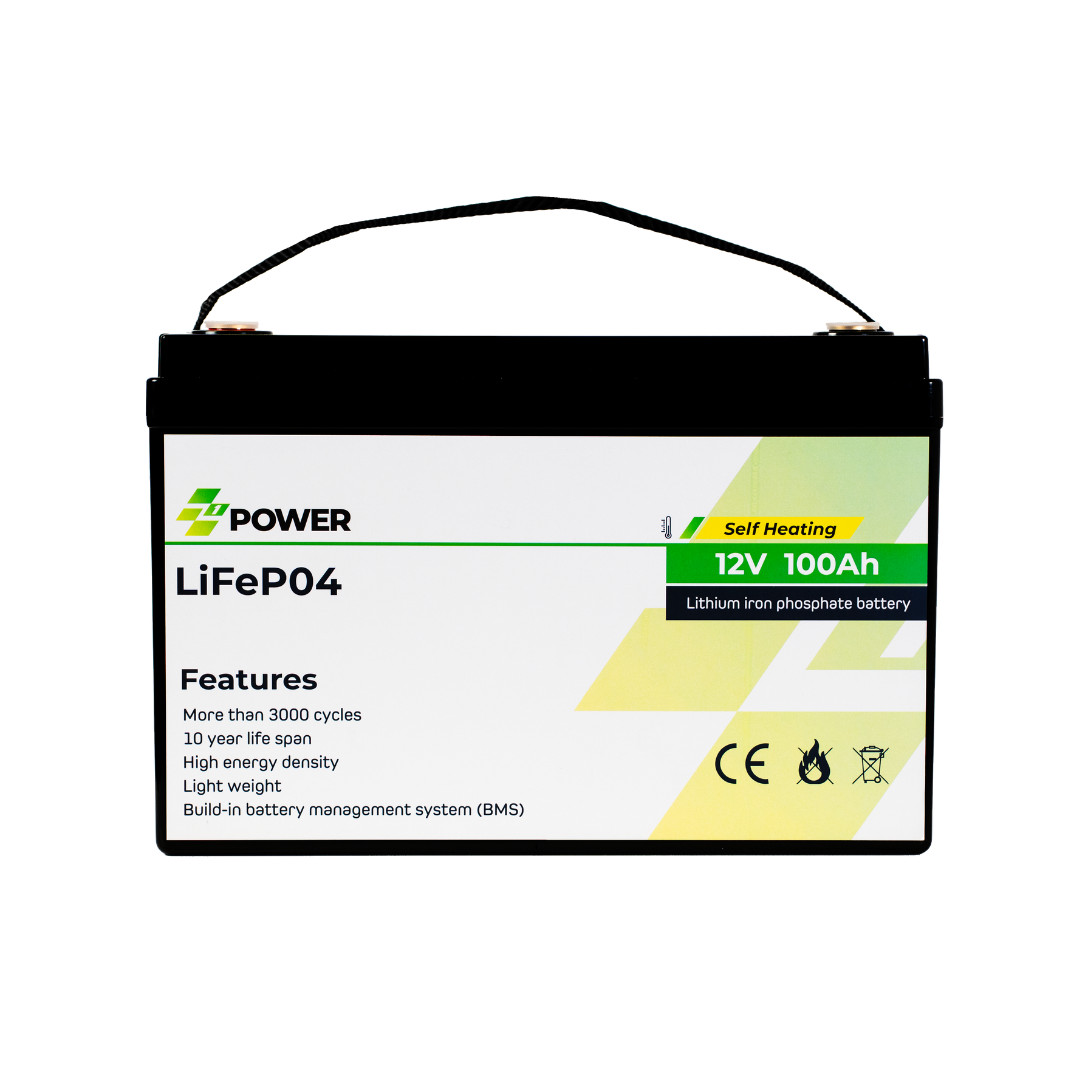

12V 100Ah Self-Heating LiFePO4 Battery
Bring the power.Stay for the view.
All-season power that charges below freezing.
- Voltage
- 12.8 V
- Capacity
- 100 Ah
- Stored energy
- 1280 Wh
- Weight
- 23.2 lb
- Warranty
- 5 years
Make yourselfat home out there.
Keep the essentials running, from the RV fridge to your fish finder. Grade-A LiFePO4 cells and built-in battery protection sit inside a 30.42 lb battery, with no electrolyte top-ups to add to your routine.
- Bluetooth Monitoring
- BMS Protection
- Group 24 Size
- Support up to 4P4S
- Maintenace Free
Self-heating, when it’s needed.
In cold conditions, a connected charger powers the built-in heater to warm the cells before charging begins.
Details
How self-heating works
Self-heating adds cold-weather charging support to a battery made for everyday use. When cold cells need warming, the built-in heater draws power from a connected charger. Charging begins after the cells reach the required temperature. The heater operates automatically when needed.
Specifications
| Specification | Value |
|---|---|
| Model SKU | Z1P-12V-100-SH |
| Cell chemistry | |
| Nominal voltage | |
| Working voltage | |
| Capacity | |
| Rated energy | |
| Usable depth of discharge | |
| Rated cycle life | |
| Self-discharge | |
| Weight | 23.2 lb |
| Dimensions L × W × H | |
| Terminals | M8 |
| Recommended continuous discharge | 100A |
| Maximum continuous output | 1,280W |
| Discharge temperature | −4°F to 140°F (−20°C to 60°C) |
| Enclosure rating | IP65 |
| Self-heating | |
| Maximum series connection | 4 matching batteries |
| Maximum parallel connection | 4 matching batteries |
| Calendar life |
Cycle life is rated under the conditions shown. Actual results vary with temperature, charging and use. Rated energy is the battery’s nominal storage capacity; delivered energy depends on depth of discharge and system losses.
Compatibility
Use with compatible 12V RV appliances, fish finders, lighting and off-grid systems. Check your equipment’s voltage, running current and startup demand against the battery’s ratings. For AC appliances, use a compatible inverter sized to your loads.
Connect up to four matching batteries in series, or up to four in parallel. Match the charger and connected equipment to the completed bank’s voltage.
IP65 protection covers dust and water jets. Install the battery where it will not be submerged.
Charging & warranty
Charging
Use a LiFePO4-compatible charger with a constant-current, constant-voltage profile. The settings below apply to one 12V 100Ah battery.
| Charging requirement | Value |
|---|---|
| Charge method | |
| Recommended charging current | |
| Maximum charging current | |
| Charging voltage | |
| BMS high-voltage cutoff | |
| Cell charging temperature |
When the cells are cold, the heater warms them before charging. The charging temperature range refers to the cells, rather than the surrounding air.
Care
Store in a dry place between 32°F and 113°F (0°C to 45°C). Keep the terminals clean and secure. No electrolyte top-ups are needed.
Warranty
Your battery includes a 5-year Z1Power warranty from the date of purchase. Coverage is subject to the warranty policy. Keep your order number, serial number and proof of purchase for any claim.
