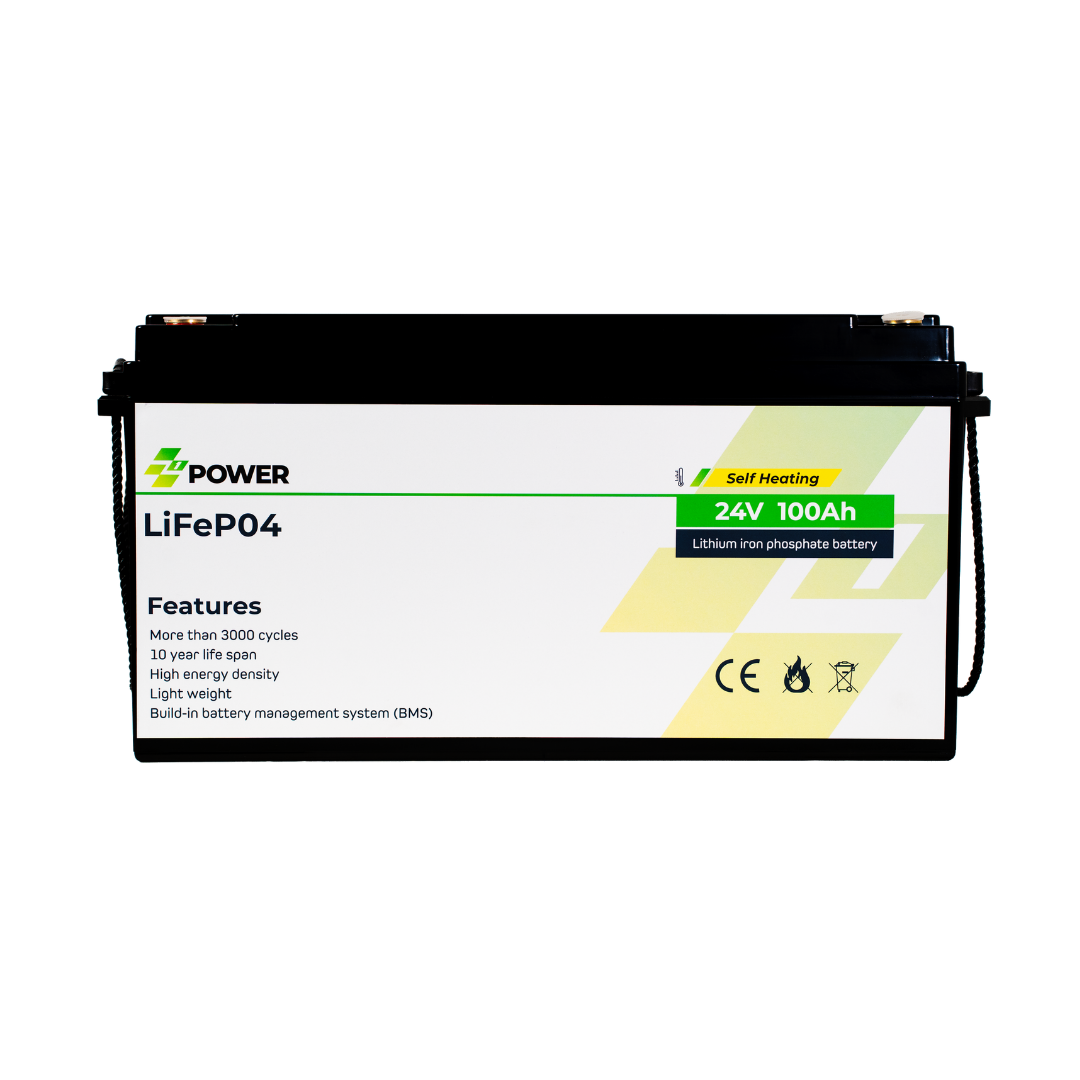

24V 100Ah Self-Heating LiFePO4 Battery

Name: 24V 100Ah Self-Heating LiFePO4 Battery
Brand: Z1Power
SKU: Z1P-24V-100-SH
Availability: OutOfStock

Bring the power.Stay for the view.

Efficient 24V power for cold systems.

Voltage: 25.6 V
Capacity: 100 Ah
Stored energy: 2560 Wh
Weight
Warranty: 5 years

Make yourselfat home out there.

Twice the power of a sealed lead acid battery at half the weight, with a lifespan up to 8x longer. Maintenance-free, safer, and built for the people who depend on their power.

Built-in protection
Maintenance-free
Automatic self-heating

Self-heating, when it’s needed.

In cold conditions, a connected charger powers the built-in heater to warm the cells before charging begins.

Details

Specifications

24V 100Ah Self-Heating LiFePO4 Battery specifications
Specification	Value
Model SKU	Z1P-24V-100-SH
Cell chemistry	Lithium Iron Phosphate
Nominal voltage	25.6 V
Working voltage	20.0 V - 28.8 V
Capacity	100 Ah
Rated energy	2560 Wh
Usable depth of discharge	80%
Rated cycle life	>6,000 cycles @ 0.2C, 80% DoD
Self-discharge	≤3% Per Month
Weight
Dimensions L × W × H	19.10 x 6.82 x 9.53 in
Self-heating	Yes
Calendar life	10 - 12 years

Download the data sheet

Compatibility

24V RV and Marine Systems
Large Trolling Motors
Inverter Solar Builds
and Cold-Climate Off-Grid, halving current draw while self-heating enables safe charging well below freezing.

Charging & warranty

Charging

Use a LiFePO4-compatible charger with a constant-current, constant-voltage profile. The settings below apply to one 24V 100Ah Self-Heating LiFePO4 Battery.

Charging requirement	Value
Charge method	CC/CV
Recommended charging current	20 A
Maximum charging current	100 A
Charging voltage	28.8 ±0.2V
BMS high-voltage cutoff	28.8 V
Cell charging temperature	32°F to 122°F (0°C to 50°C)

When the cells are cold, the heater warms them before charging. The charging temperature range refers to the cells, rather than the surrounding air.

Care

Store in a dry place between 32°F and 113°F (0°C to 45°C). Keep the terminals clean and secure. No electrolyte top-ups are needed.

Warranty

Your product includes a 5-year Z1Power warranty from the date of purchase. Coverage is subject to the warranty policy. Keep your order number, serial number and proof of purchase for any claim.

Read the warranty policy

Contact Z1Power

FOR THE PLACES YOU’D RATHER BE

Stay out forthe next bite.

Power for lights and fishing electronics.

Your next tripstarts here.

Bring Z1 Power along.

24V 100Ah Self-Heating LiFePO4 Battery

$0.00 USD

Sold out
